FeaturesSpecificationDownloadVideoAccessories
CBS2/CBS3
Constant-heated Bonding Machine
CBS312-1

功能及特点:
• PID control, high accuracy constant heating.
• User setup temperature, time and pressure.
• Dual CCD camera for align HSC to PCB and HSC to LCD simultaneously.
• Level mechanism for co-planarity compensation ensures uniform temperature and bonding pressure.
Applications：
Item: Descriptions:
Constant Heating Specification
Heating Method Constant heating(PID)
Temperature Range 50 to 400℃(1 degree increment)
Temperature accuracy ±2℃
Force Range 30 N to 600 N
Force accuracy ±2N
Time Period 1 to 60 seconds (1 second increment)
Thermode stroke 50 mm
System Specifications
Dimensions CBS2 – 584 mm(L) x 707 mm(W) x 562 mm(H)
CBS3 – 255 mm(L) x 480 mm(W) x 350 mm(H)
Weight(Alignment System not Included) CBS213 – 50 Kg, CBS312 – 30Kg
Power Consumption 110/220V ~ 50-60Hz, 1KVA
Air supply 4 to 6 Kg/cm2
Starting operation method Two hand control
Dimensions：
SDM121L-3
CBS312 Inline Constant-heat Bonding System
Product Catalog
Video being shot, make the next to watch!
Being compiled, please look at the next!！
]]> http://www.adotech.com.cn/en/?feed=rss2&p=669 0 CBS212 Constant-heated Bonding Machine http://www.adotech.com.cn/en/?p=251 http://www.adotech.com.cn/en/?p=251#respond Sun, 12 Oct 2014 11:43:54 +0000 http://www.adotech.com.cn/?p=251 • Using Panasonic PLC and temperature controller ensures high accuracy heating and time control.
• User can setup temperature, time and pressure.
• Front CCD camera system aligns HSC to PCB or HSC to LCD before heat sealing.
• Level mechanism for co-planarity compensation ensures uniform temperature and bonding pressure.

Features Specifications手册文件视频选配配件

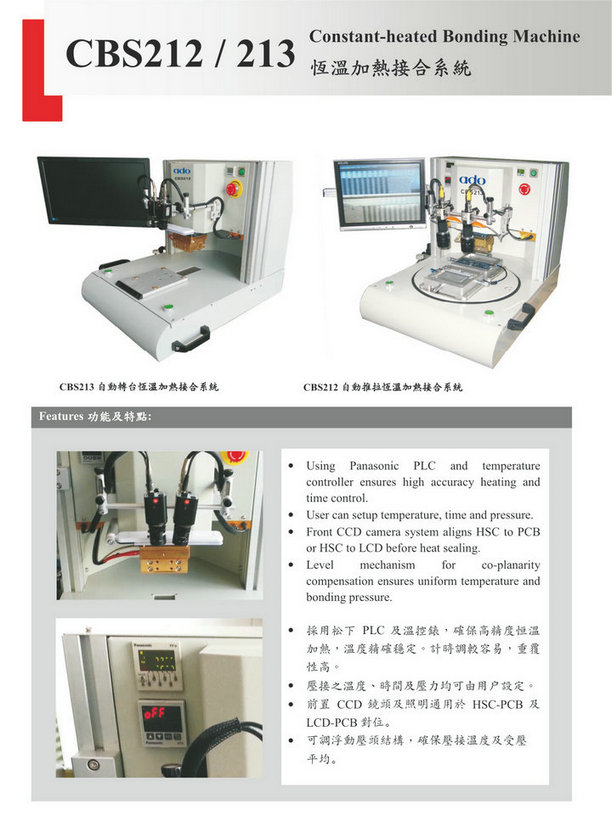

CBS212-213-85

CBS212-213技术规格-85

CBS212 恒温加热接合系统规格参数

产品手册下载

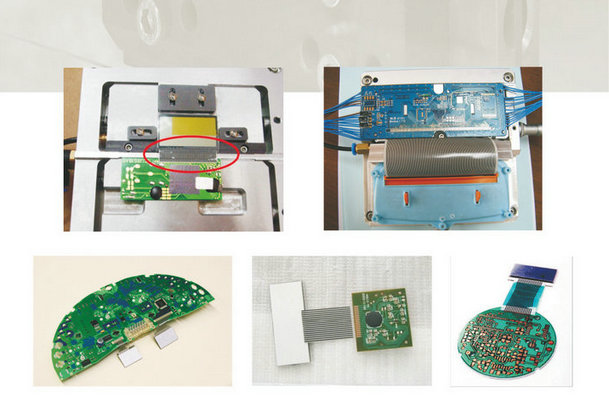

配件A
CBS212-213配件-85
