PBS212
Auto Sliding Pulsed-heat Bonding System
Auto Sliding Pulsed-heat Bonding System
Features：
| • Real-time temperature and force profile display on the LCD touch screen. • Titanium alloy thermode ensure uniform temperature, fast heating and longest service life. • Password protection for process parameters and system configuration. • Leveling mechanism for co-planarity compensation bwtween Flex and PCB. • Colour (CC19) alignment module for TAB/flex to PCB/LCD. • Chinese / English user interface display. |
| PBS212 Technical Specifications | |||
|---|---|---|---|
| SYSTEM | |||
| Dimensions: | 760(L) x710(D) x 560(H) mm | ||
| Weight (without fixtures): | 80 Kg | ||
| Power consumption: | 220V ~ 50 Hz / 110V~60Hz (Preset) | ||
| Air supply: | 0.4 – 0.6 MPa | ||
| Fixture assembly baseplate: | 150 x 150 mm (1 set) | ||
| Starting operation method: | Two hand safety control | ||
| Sliding/Turntable actuation: | Pneumatic(SMC) | ||
| ntable diameter / Stroke: | 400mm | ||
| Vacuum for components holding: | 1 sets | ||
| THERMODE | |||
| Force range: | 30 N to 500 N | ||
| Force accuracy: | ±2 N | ||
| Actuation type: | Pneumatic (SMC) | ||
| Thermode stroke: | 50 mm maximum | ||
| Thermode length: | 100 mm maximum | ||
| PULSED HEATING CONTROL | |||
| Heating method: | PID control pulsed heating | ||
| Temperature preheat: | 50 to 500℃(1 degree increment) | ||
| Temperature reflow: | 50 to 500℃(1 degree increment) | ||
| Time period preheat: | 1 to 60 seconds (1 second increment) | ||
| Time period reflow: | 1 to 60 seconds (1 second increment) | ||
| Temperature accuracy: | ±2℃ | ||

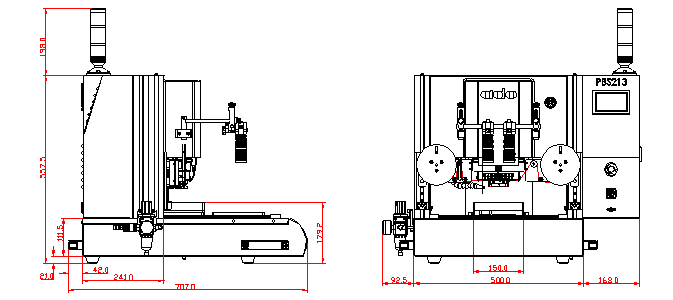

* Picture above shown the PBS213 with Optional CCD alignment module and Tape Feeding System.
